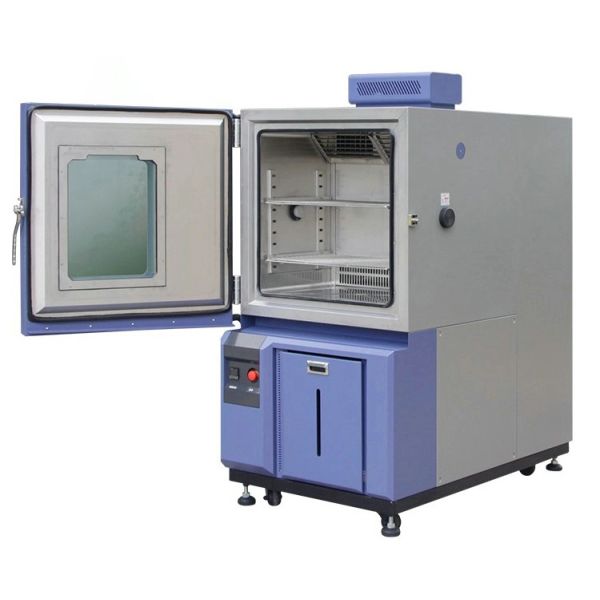

70~+150C Lab Programmable Constant Temperature And Humidity Test
Chamber Climate Test Chamber
Features
Temperature humidity test chamber is used to test various types of
materials for their tolerances of heat, cold, dry, humidity. It is
applied for quality inspection for all types of electronic
products, electric appliance, and products from communication,
instrument, automobile, plastic, metal, food, chemical, building
materials, medical and aerospace industries.
Advantages:
1.The constant temperature and humidity test box is mainly composed
of control panel, distribution panel, insulation layer, air supply
fan, heater, humidifier and refrigeration unit. The main
specifications can be divided into 6 standard sizes and 10
specifications under different conditions.
2.The controller can be connected to the computer through LAN
interface. Users can design programs on the computer screen,
collect test data and records, call program execution, remote
control machine switch and other functions.
3.The use of multi-wing air supply fan strong air circulation, to
avoid any dead angle, so that indoor temperature and humidity
distribution is uniform.
4. Complete safety protection device, if abnormal conditions occur,
the controller screen will automatically display the fault status,
cut off the power switch, and provide troubleshooting methods.
Technical Specification:
| | 50x60x50 | 50x75x60 | 60x85x80 | | 100x100x100 |
| 90x136x94 | 100x146x104 | 100x161x117 | 110x171x137 | 150x186x137 | 150x186x157 |
Temperature range | -70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) |
Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. |
Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. |
Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) |
Inside material | |
Insulation material | High-temperature high-density amino acid ethyl ester foam
insulation materials, |
Cooling system | Air-cooled/ single-stage compressor(-20℃) , wind, water
cooled/two-stage compressor(-40℃~-70℃) |
protection | compressor overload switch, high and low pressure protection
switch, over-humidity-temperature protection switches, fuses,
warning system |
accessories | recorder(purchase), view window, 50mm testing hole,PL
lamp,clapboard,Dry and wet gauze ball |
controller | TEMI300 digital controller from South Korea |
compressor | |
power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
We keep good quality and competitive price to ensure our customers
benefit ; We respect every customer as our friend and we sincerely
do business and make friends with them,no matter where they come
from. Each batch of parts is done quality sampling inspection
before into the warehouse, and Each product before delivery is
tested by the national authoritative third-party inspection agency
